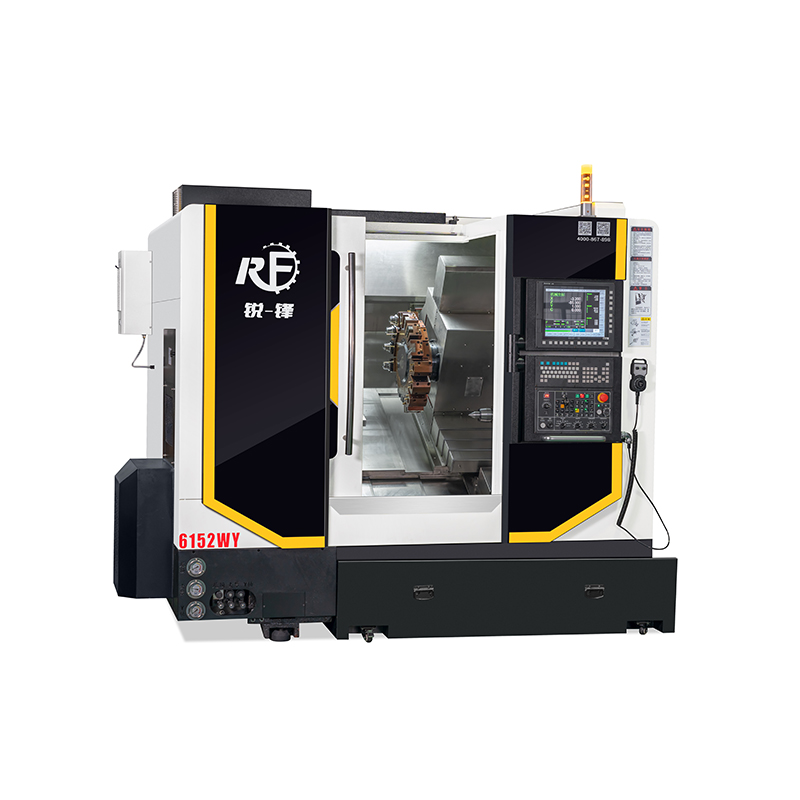

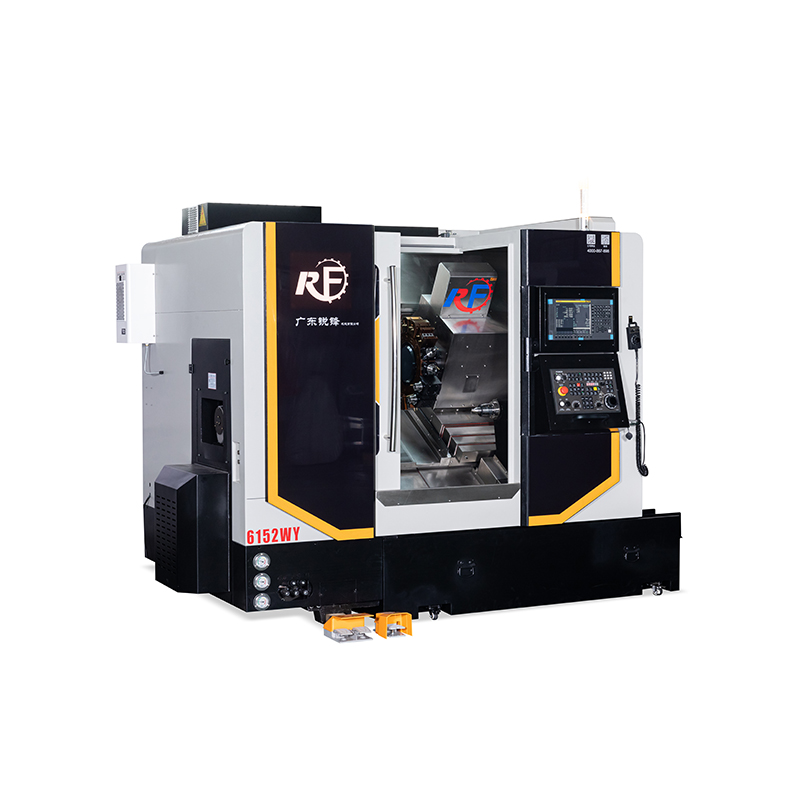

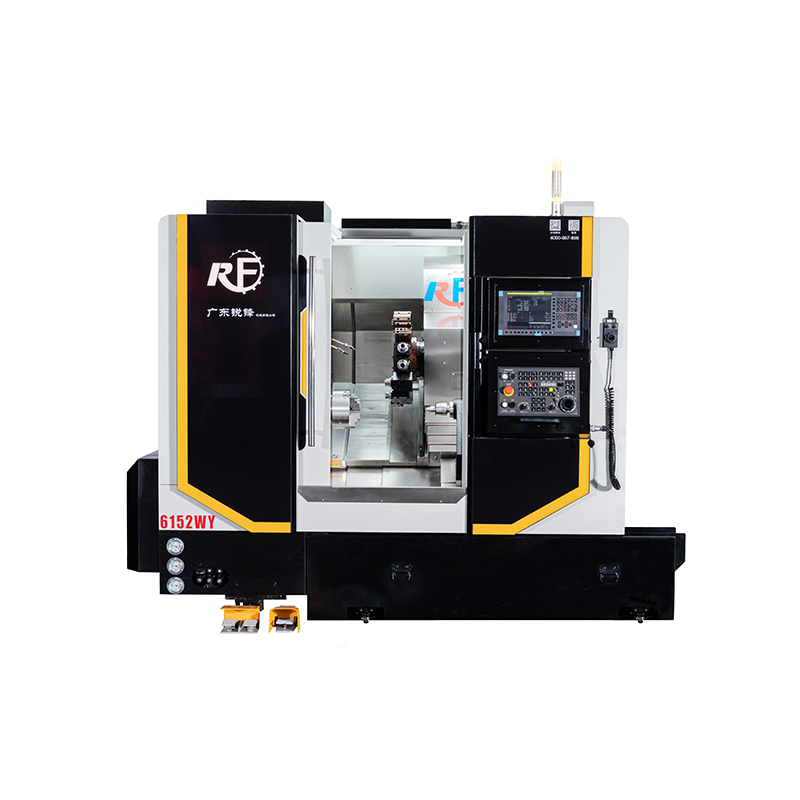

52WY

Car milling composite CNC lathe

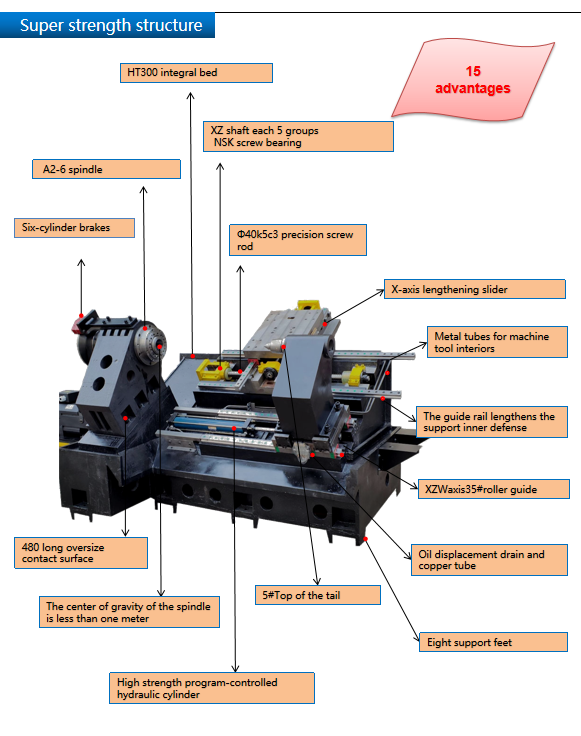

the bed body of this model adopts the overall casting structure, the whole machine weighs about 4.5 tons, to ensure that the machine tool is not deformed for a long time, high rigidity, strong stability;

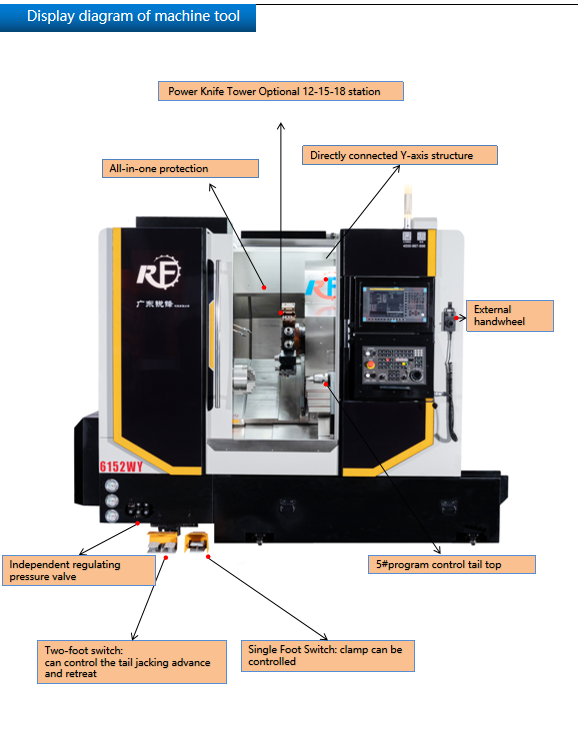

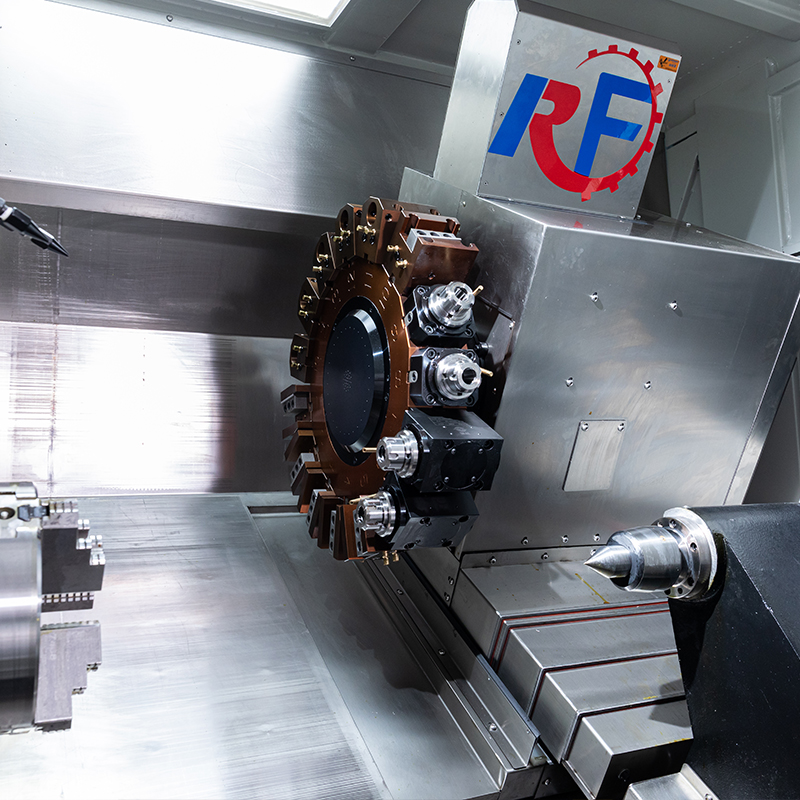

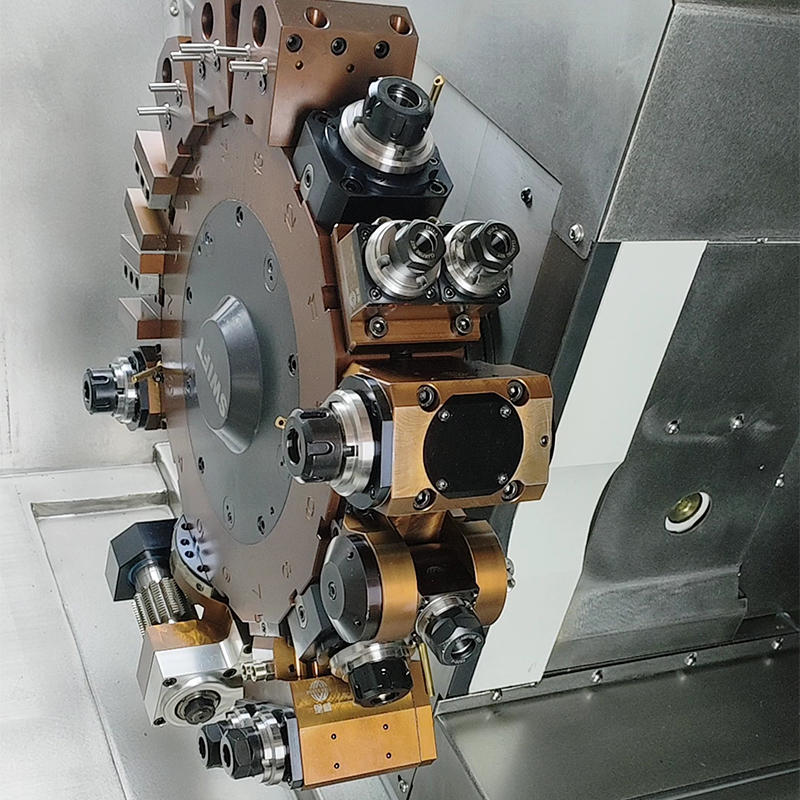

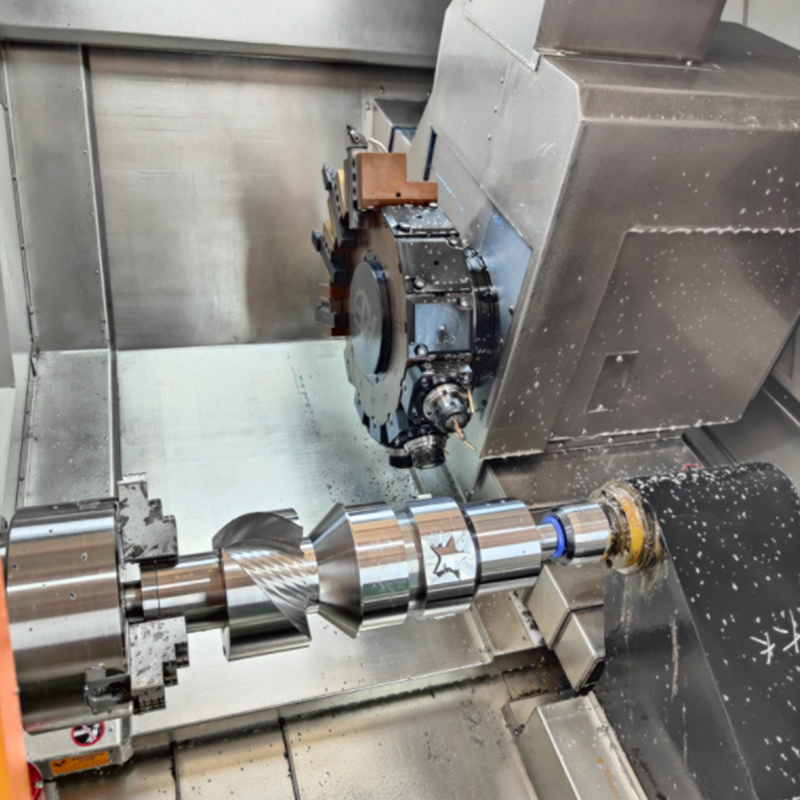

With Y-axis power knife tower, equipped with richer tools, more powerful functions, can realize turning, grinding, milling, drilling, tapping teeth, rolling teeth, slot, etc., to achieve the core functions of the milling center.

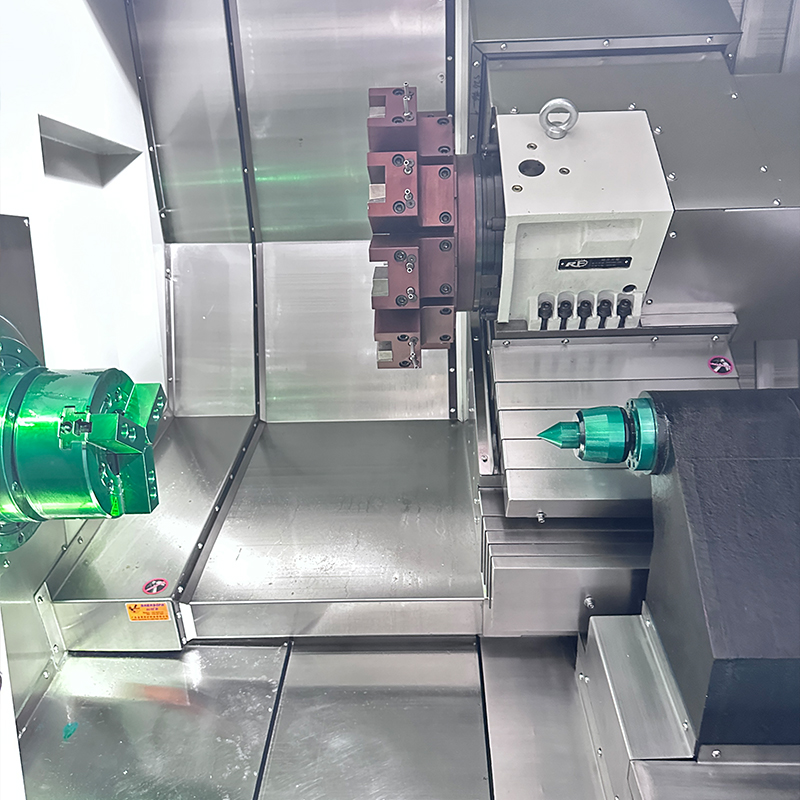

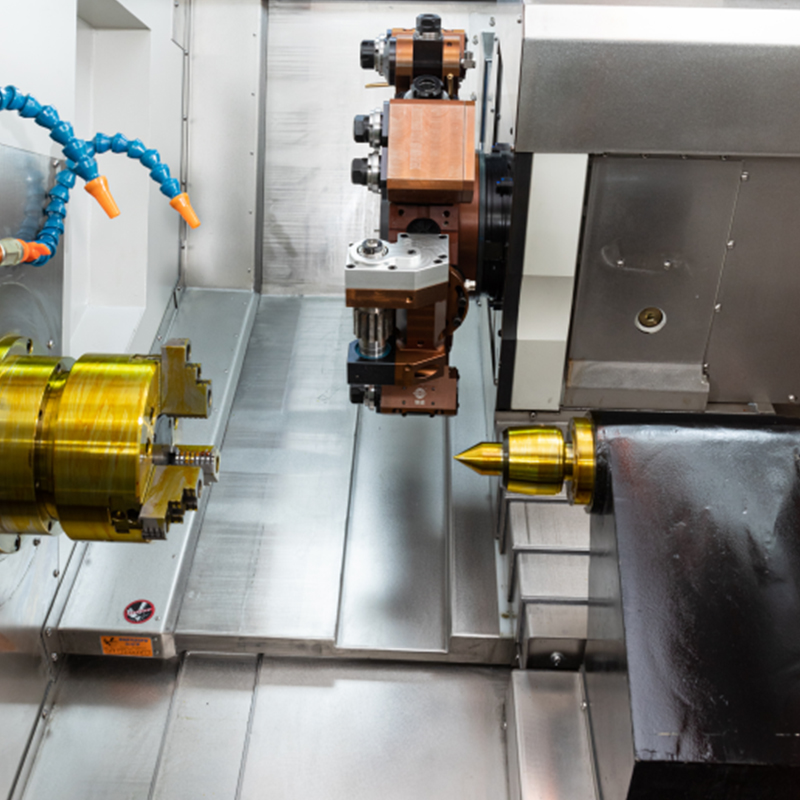

The tail seat can be used for program programming to comprehensively solve the accuracy problem of long axis processing.
the guide rail adopts the roller high steel system, the outer diameter of the wire rod φ 40MM precision grinding wire rod, so that the rigidity and accuracy of the machine tool to a higher level.

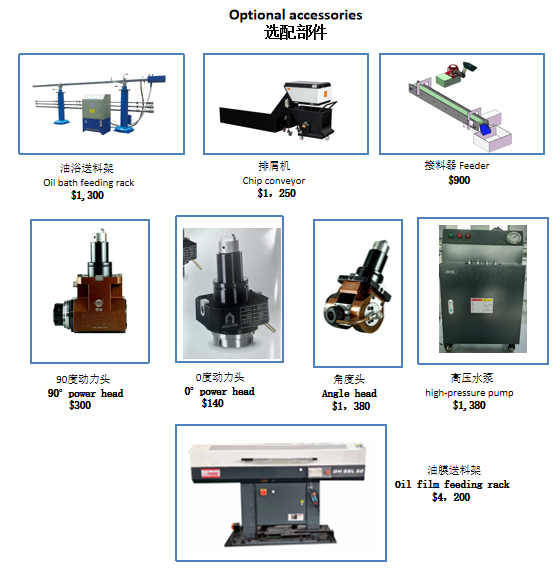

can be matched with automatic manipulator, feeding frame, feed feeder, chip exhaust machine and other accessories, to achieve fully automated production.
the machine tool has a strong adaptability, can process a variety of shaft, plate parts, can also cut a variety of thread, arc, cone and rotary inner and outer surface, parts partial to the shaft drilling, milling groove tapping teeth and other processing, is a kind of professional disc and shaft parts processing the most excellent machine tool.

Contact Us

Video Description

Product Information

Rotation diameter /mm

￠550
Maximum machining shaft diameter/mm

￠250
Maximum diameter of machining disc type/mm

￠370
Machining length/mm

Straight Blade400、Anti-knife500
Maximum travel / mm

400
Y-axis travel/mm

±50
Top model

MOHS5#
Spindle end form

A2-6
spindle bore/mm

￠65
Material diameter/mm

￠52
Spindle speed/change

1~5000

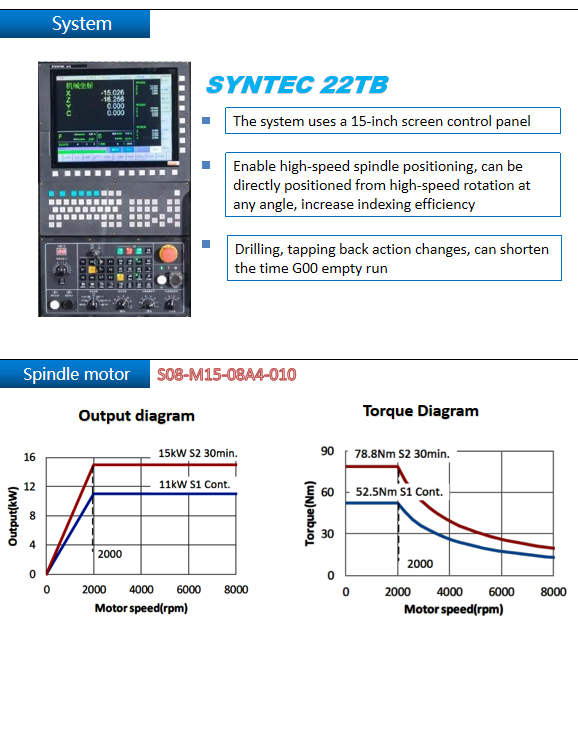

Spindle motor power/KW

11
Hydraulic cylinder

8 inches
X and Z axis maximum stroke / mm

400、500
X Z's fastest moving speed/min

30
Screw diameter

￠40、￠40
Rail width/mm

35、35
X、Z.Y Axis repeated positioning precision/mm

≤0.005
Length * width * height / mm

2700*2000*2300
weight /kg

4500
30°structure

HTC300 whole-piece cast

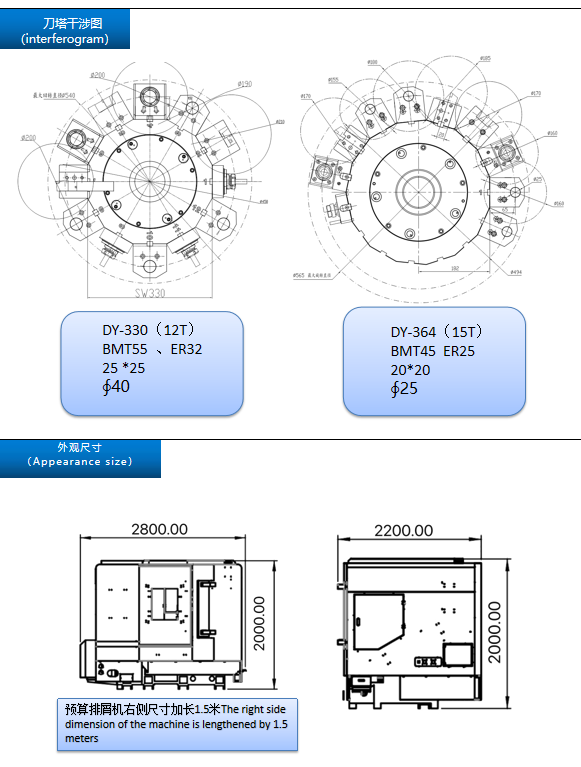

Knife tower workstation/station

15
Specification of knife tower / mm

□20*20、￠25
Power knife seat specifications

BMT40
Power head speed/turn

1-4000

Product Introduction

52WY

Car milling composite CNC lathe

the bed body of this model adopts the overall casting structure, the whole machine weighs about 4.5 tons, to ensure that the machine tool is not deformed for a long time, high rigidity, strong stability;
With Y-axis power knife tower, equipped with richer tools, more powerful functions, can realize turning, grinding, milling, drilling, tapping teeth, rolling teeth, slot, etc., to achieve the core functions of the milling center.
The tail seat can be used for program programming to comprehensively solve the accuracy problem of long axis processing.
the guide rail adopts the roller high steel system, the outer diameter of the wire rod φ 40MM precision grinding wire rod, so that the rigidity and accuracy of the machine tool to a higher level.
can be matched with automatic manipulator, feeding frame, feed feeder, chip exhaust machine and other accessories, to achieve fully automated production.
the machine tool has a strong adaptability, can process a variety of shaft, plate parts, can also cut a variety of thread, arc, cone and rotary inner and outer surface, parts partial to the shaft drilling, milling groove tapping teeth and other processing, is a kind of professional disc and shaft parts processing the most excellent machine tool.
